For both the geographical and the logical views, bindings are the following :

  • Left-click on a node: selection of the node.
  • Double left-click on an object: open the property panel.

The property panel displays all properties of the object, and any property can be modified. If the object is a node, it also contains a Connect button to automatically start an SSH to the device.

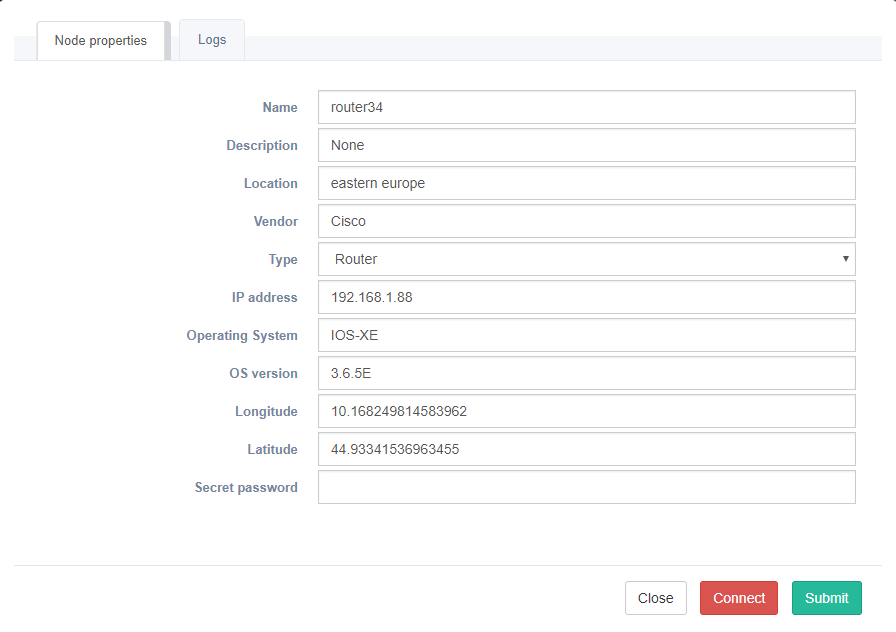

Property panel: properties

If the SYSLOG server has been activated, eNMS stores all logs it receives. The property panel also contains a Logs tabs that display all logs sent by this specific node.

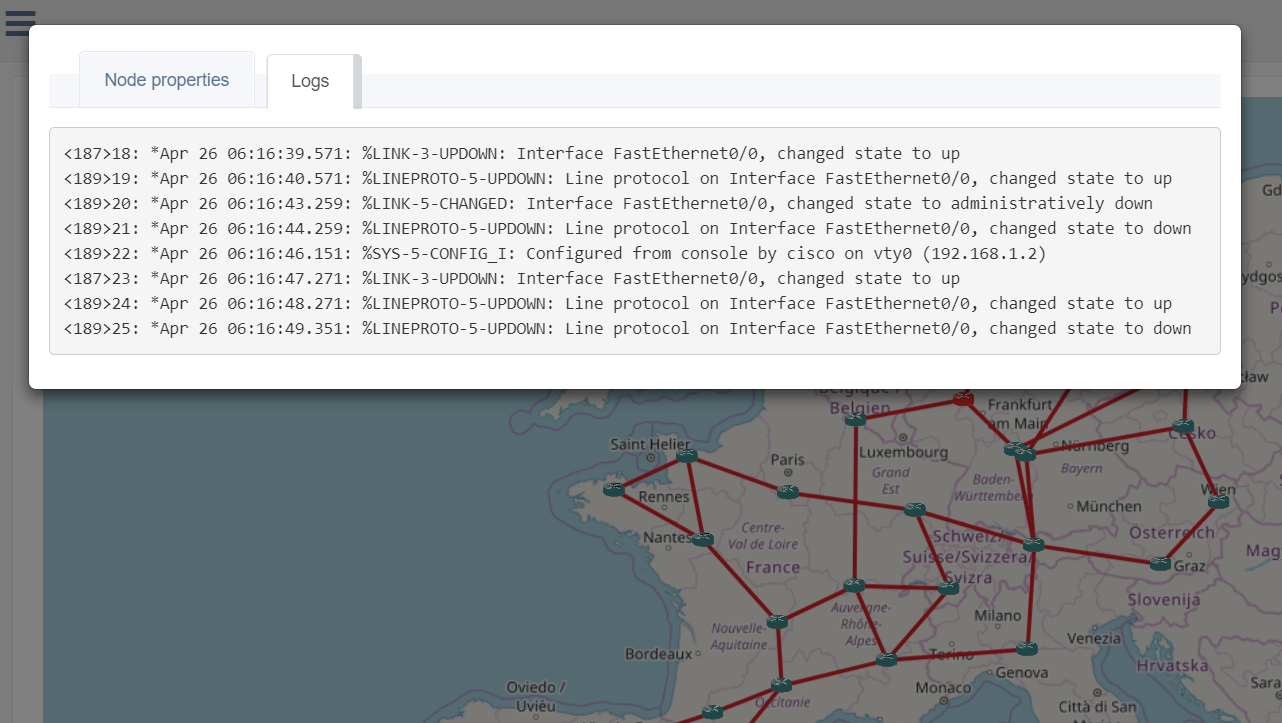

Property panel: logs
  • Shift + left-click: draw a selection rectangle to select multiple nodes at once.
Multiple selection
  • Right-click: Unselect all nodes.
